Product Overview:

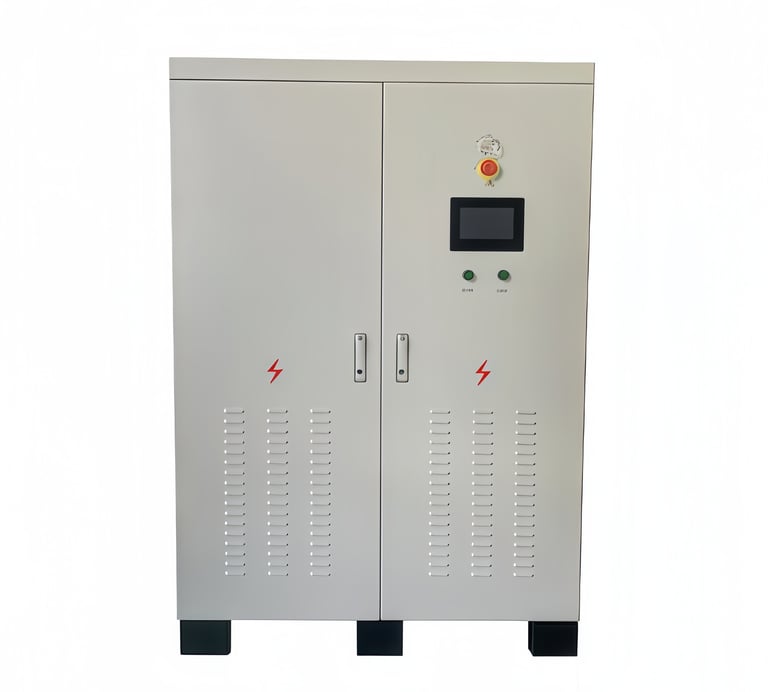

The LNS series off-grid inverter is a power conversion device that converts input DC power into sinusoidal AC power for direct supply to local loads. It is a high-efficiency power source suitable for photovoltaic and wind power generation systems. The off-grid inverter operates normally in the inversion output mode. When the DC power supply is disconnected or the inversion conditions are not met, and if the inverter has a grid bypass connection, the system can switch to bypass power supply mode to meet basic electricity needs. When the inversion conditions are met again, the inverter switches back to inversion mode.

Off-grid inverters can be classified by conventional output types as follows:

• Single-phase off-grid inverter: outputs single-phase AC power.

• Three-phase off-grid inverter: outputs three-phase AC power.
  Additionally, two-phase off-grid inverters can be customized as needed: outputting two-phase AC power.

Technical Features:

1、High Efficiency Conversion

Optimized circuit topology and control algorithm for efficient conversion，Minimizes energy loss，aintains high conversion efficiency under different loads and operating conditions

2、Multiple Protection Functions

Input reverse connection protection，Input undervoltage protection，Input overvoltage protection，Output overvoltage protection，Output overload protection，Overheat protection

3、Display and Settings

Color LCD touch screen for displaying various operating parameters，Adjustable settings for relevant parameters

4、Communication Capabilities

Equipped with standard RS232/485 communication interfaces，Facilitates remote communication and control

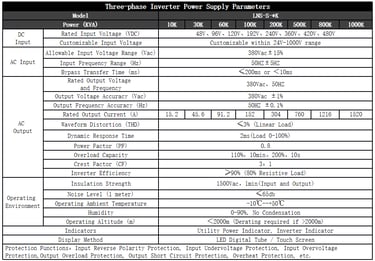

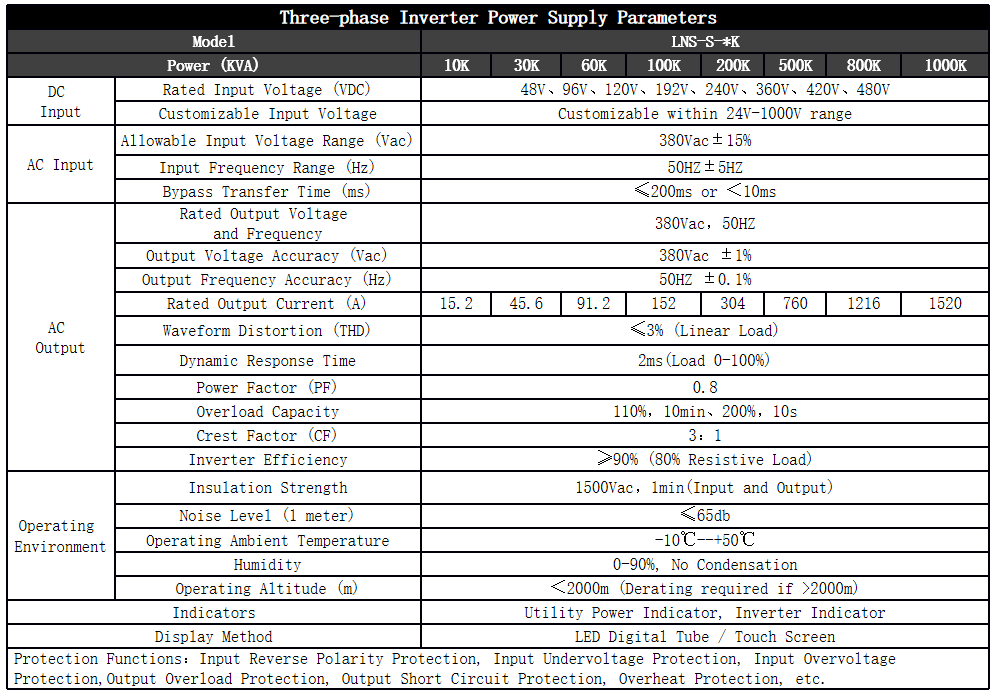

Technical Parameters and Selection
