Emergency Power Supply (EPS)
Product Overview:
The LY-D series single-phase emergency power supply is designed in accordance with GB17945-2010 "Fire Emergency Lighting and Evacuation Indication System" standards. It is manufactured using modern power electronics and control technologies, with battery as the power source and inverter as the core component. This AC power supply equipment integrates functions of inversion, charging, centralized control, and detection.
The LY-D series single-phase emergency power supply produced by our company is a device designed to provide backup power for single-phase lighting loads. When power failure occurs due to fire, accidents, or other emergencies, the emergency power supply can provide emergency power for fire exit signs, lighting fixtures, and other critical loads. With the improvement of fire safety standards in various venues, especially in high-rise buildings, large stadiums, and rail transit systems, emergency power supplies have become essential fire safety equipment. The device consists of an inverter, charger, battery pack, controller, and switching mechanism.
Technical Features:
Advanced technology and redundant design with multi-CPU control, carefully manufactured using high-quality components, ensuring stable performance and high reliability.
High-frequency IGBT SPWM inverter technology provides high power supply quality, complete control functions, sufficient output power, and adaptability to various loads.
Advanced inverter circuit with imported power components, resulting in low loss and high efficiency.
High-power charger with automatic charging technology offers fast charging speed and stable floating charge voltage, featuring intelligent battery unit detection and management system with remote monitoring function.
Modular design of internal functional components ensures simple structure and easy maintenance. LCD display shows working status, mains voltage, output voltage, frequency, battery voltage, output current, fault types, and other information clearly. Audible and visual fault alarms indicate fault types with mute function.
Excellent output overload protection, short-circuit protection, battery reverse connection protection, over-discharge protection, and other comprehensive protection functions, with strong resistance to misuse.

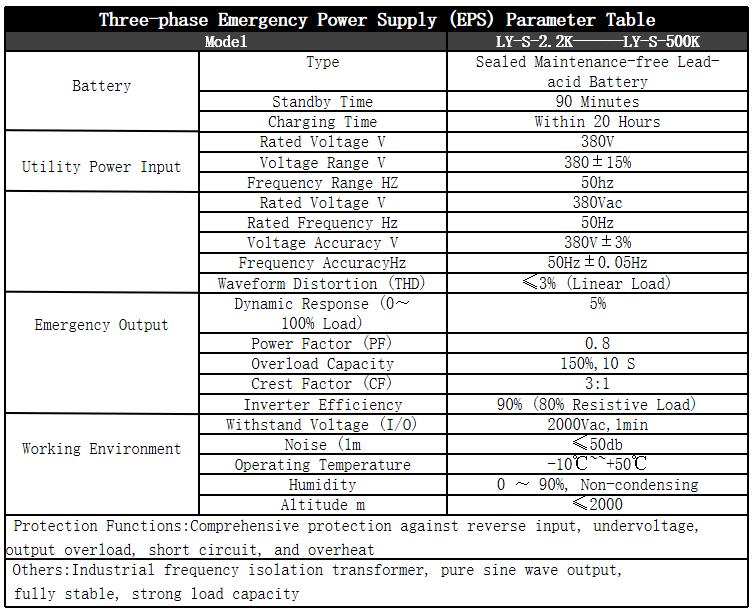

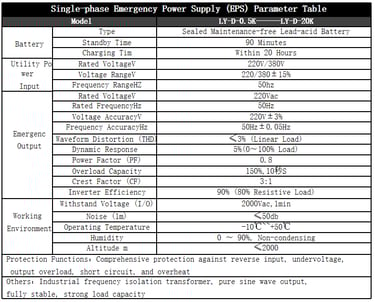

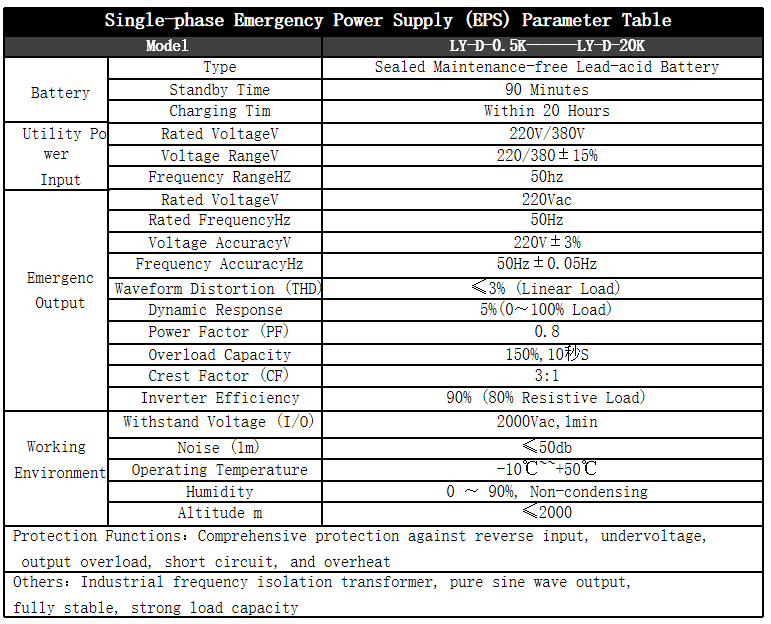

Technical Parameters and Selection
Technical Parameters and Selection
