Highway Isolation Converter
Product Overview:
The LW series remote power supply for highways is a new generation of dedicated power transmission equipment designed and manufactured using modular and digital program-controlled technology, specifically addressing the characteristics of high reliability requirements for high-speed power transmission, long-term continuous operation, dispersed loads over long distances, and unattended operation. This series of power supplies is an AC power supply equipment that integrates control, display, protection, and communication functions with a power generator as its core.
Highway Barrier Converter Product Description:
The LW series remote power supply for expressways produced by our company is a high-speed dedicated long-distance power transmission equipment, consisting of an intelligent source-end power generator and a terminal power isolation converter. The power supply adopts an AC-DC-AC structure internally, which converts DC into clean and controllable sine waves. After voltage boosting, it is transmitted to the terminal power isolation converter and output to the load through an isolation transformer, eliminating grid interference. The power generator uses a phase-shifting transformer for input and six-pulse rectification, achieving a power factor of up to 0.99. In case of power supply abnormalities, it can automatically switch to grid power supply mode, ensuring safety and reliability. During maintenance, it can also be manually switched to grid power output, providing convenient and efficient operation.
Technical Features:
• Adopting PWM precise voltage regulation technology to reduce impact.
• Equipped with overvoltage, overcurrent, and overtemperature protection functions.
• Embedded management unit to monitor device's operating status and parameters.
• Automatic startup upon power-on, no need for restart after power recovery.
• LCD screen displays voltage, current, operating status and other parameters, with fault reset function.
• Internal boards and circuits are treated with three-proof protection.
• Intelligent communication interface with standard MODBUS_RTU protocol, facilitating network monitoring, supporting wired and cloud network integration.
• High output accuracy, low waveform distortion, and short response time.
• Special functions including isolation, filtering, and bi-directional anti-interference, effectively filtering various frequency positive and negative pulses and surge voltage impacts from lines and loads.
• Power system features lightning protection and isolated output from power grid, ensuring stability and reliability.

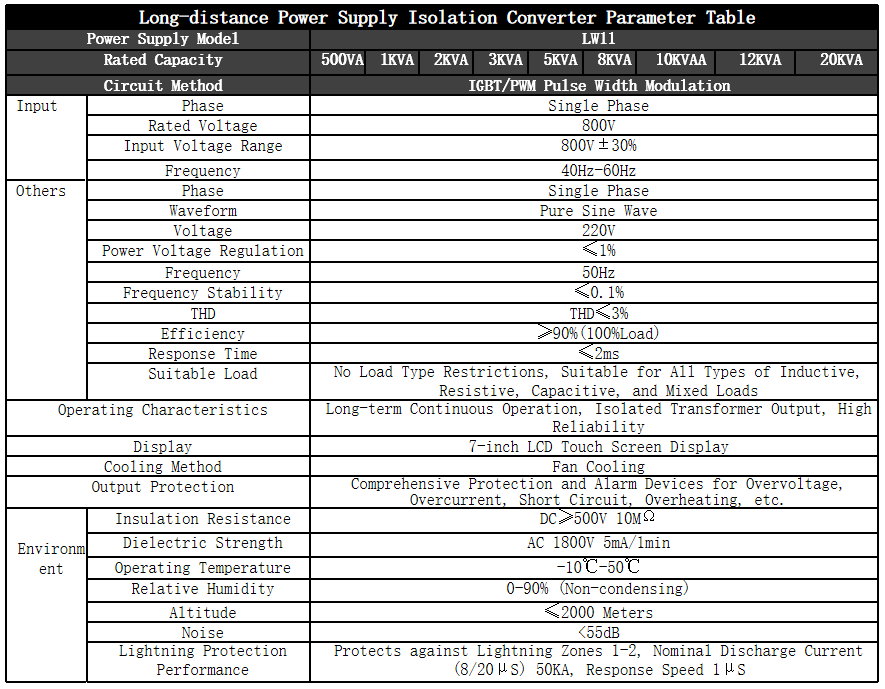

Technical Parameters and Selection
