Inverter

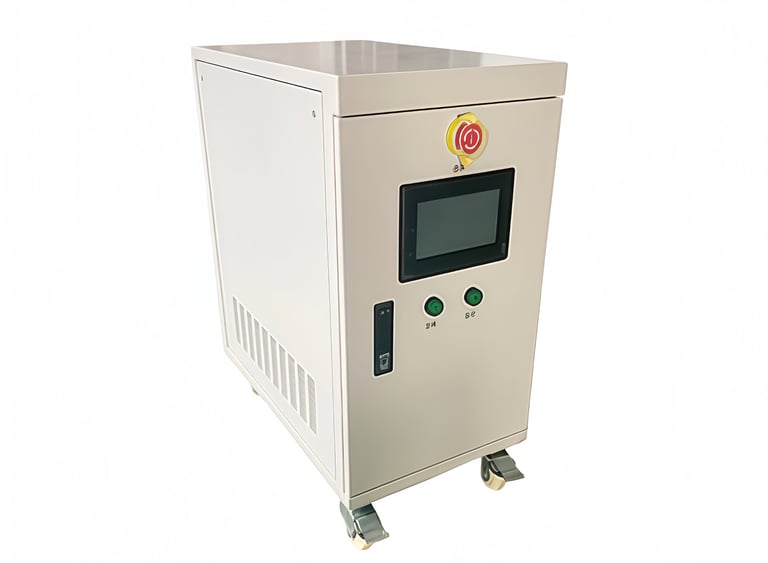

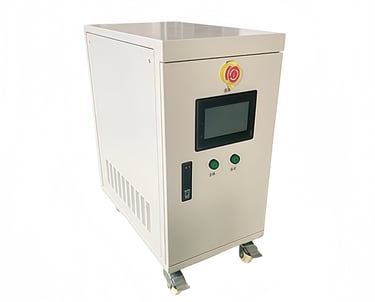

Product Overview:

An off-grid inverter is a power conversion device that converts input DC power into sinusoidal AC power for direct use by local loads. It is a high-efficiency power supply suitable for photovoltaic and wind power generation systems. The off-grid inverter normally operates in the inversion output mode. When the DC power source is disconnected or the inversion conditions are not met, and if the inverter has a grid bypass connection, the system can switch to bypass power supply mode to meet basic electricity needs. When the inversion conditions are met again, the inverter switches back to inversion mode.

With its high efficiency, high reliability, and wide input voltage range, the off-grid inverter performs exceptionally well in medium to large-capacity photovoltaic power generation systems. It effectively converts DC power to sinusoidal AC power, ensuring output accuracy fully meets rated load requirements. The inverter features a soft-start function to prevent high current surges that could damage batteries and loads. It can operate normally under a wide range of temperatures, humidity levels, and high altitudes, adapting to different geographical environments and climatic conditions.

Technical Features:

1、High Efficiency Conversion

Optimized circuit topology and control algorithm for efficient conversion，Minimizes energy loss，aintains high conversion efficiency under different loads and operating conditions

2、Multiple Protection Functions

Input reverse connection protection，Input undervoltage protection，Input overvoltage protection，Output overvoltage protection，Output overload protection，Overheat protection

3、Display and Settings

Color LCD touch screen for displaying various operating parameters，Adjustable settings for relevant parameters

4、Communication Capabilities

Equipped with standard RS232/485 communication interfaces，Facilitates remote communication and control

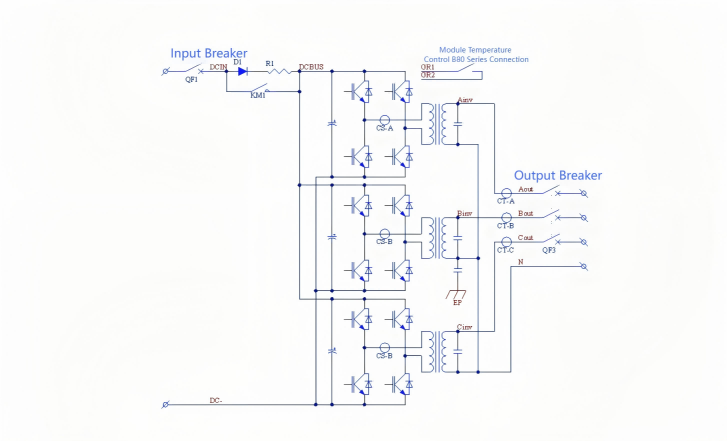

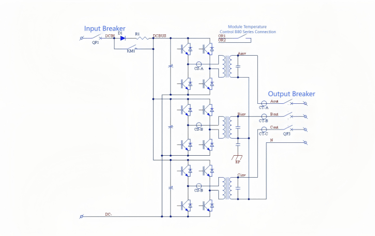

Electrical Schematic Diagram

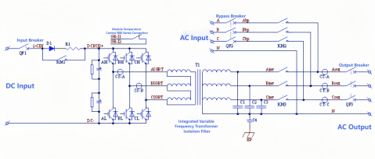

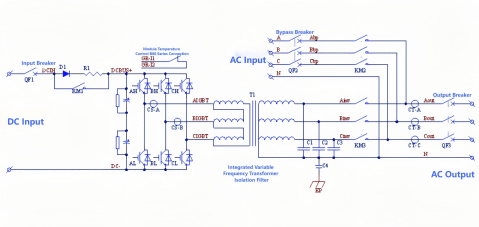

Electrical Schematic Diagram

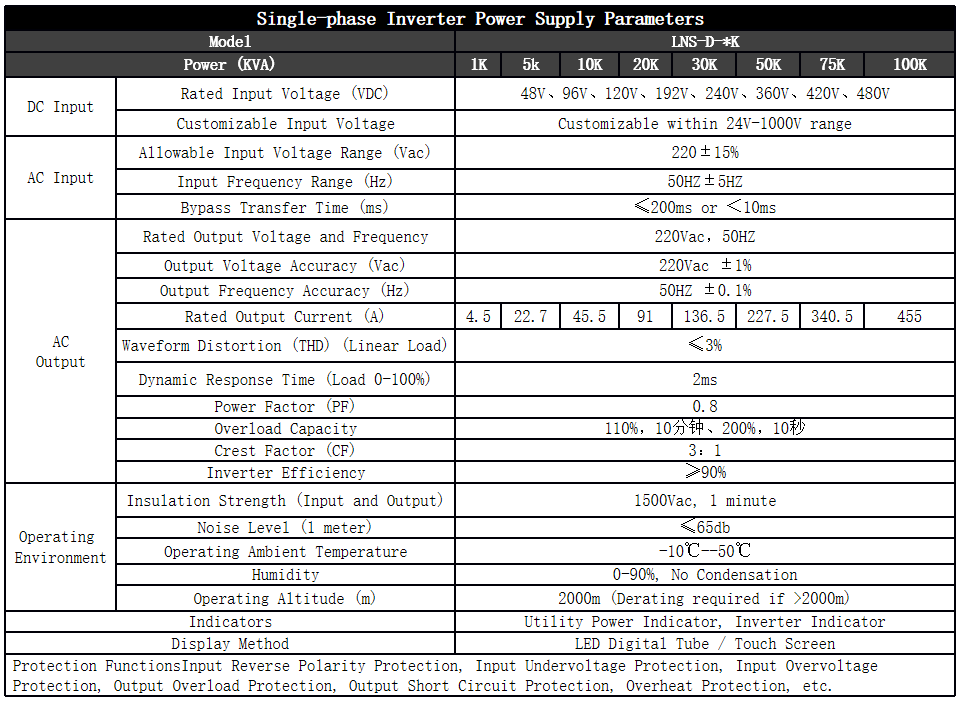

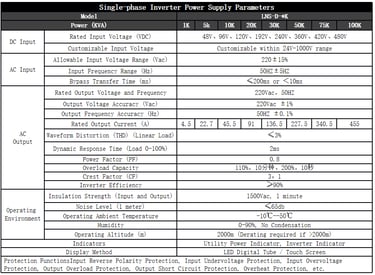

Technical Parameters and Selection
