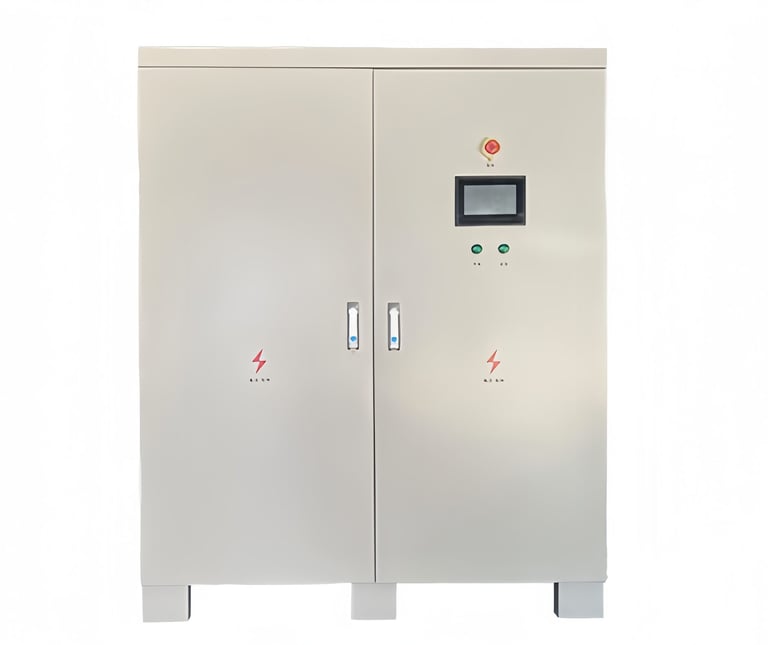

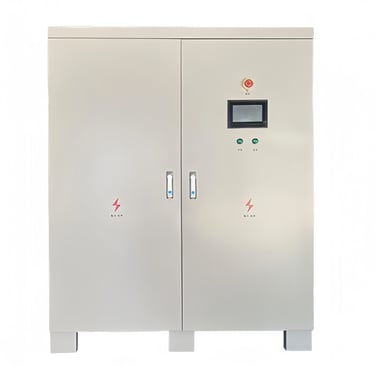

Photovoltaic Energy Storage Inverter
Product Overview :
The integrated photovoltaic-energy storage-charging system is a power equipment integrated with energy storage converter unit and photovoltaic MPPT control unit. This integrated system combines photovoltaic power generation, energy storage and charging functions, enabling efficient energy utilization, reduced energy costs, and improved grid stability. It is a green, environmentally friendly, and low-carbon energy solution.
The integrated photovoltaic-storage-charging system can be equipped with an EMS management system (optional), allowing for customized operation strategies, unified scheduling, and intelligent management.
The integrated photovoltaic-storage-charging system is designed for three-phase energy storage systems. It features adaptive grid frequency of 50/60Hz,adopt DC-AC bidirectional conversion, four-quadrant SVPWM/SPWM technology, bi-directional energy flow, power factor up to 0.99 or higher, low grid harmonic pollution, and high power quality.
Technical Features:
Quadrant operation with bi-directional energy flow, adaptive to 50/60Hz power grid.
Adjustable output power factor (-0.8 leading to 1.0 to +0.8 lagging) with customizable reactive power compensation.
Advanced interleaved control technology for reduced ripple current, extending battery life.
Built-in EMS management system (optional) for customized strategies and intelligent management.
Color touchscreen with Chinese/English switching, integrated display and control, real-time operation data at a glance.
Typical applications:
photovoltaic-energy storage integration - peak shaving and valley filling, multi-energy complementary power supply in microgrid, etc.

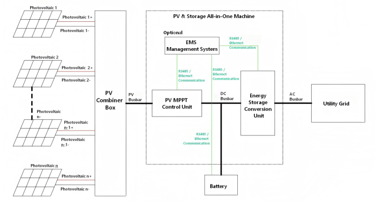

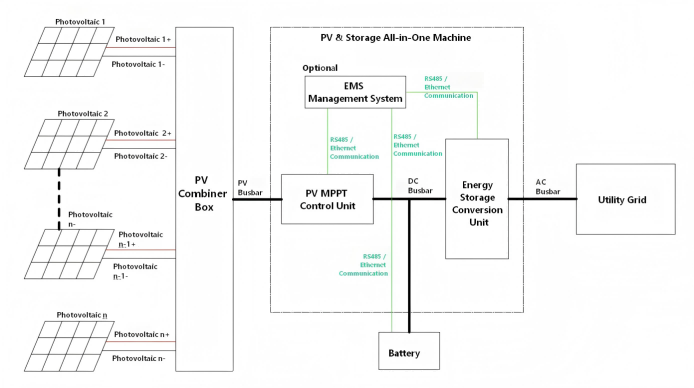

Integrated Photovoltaic Energy Storage and Charging System Topology Diagram

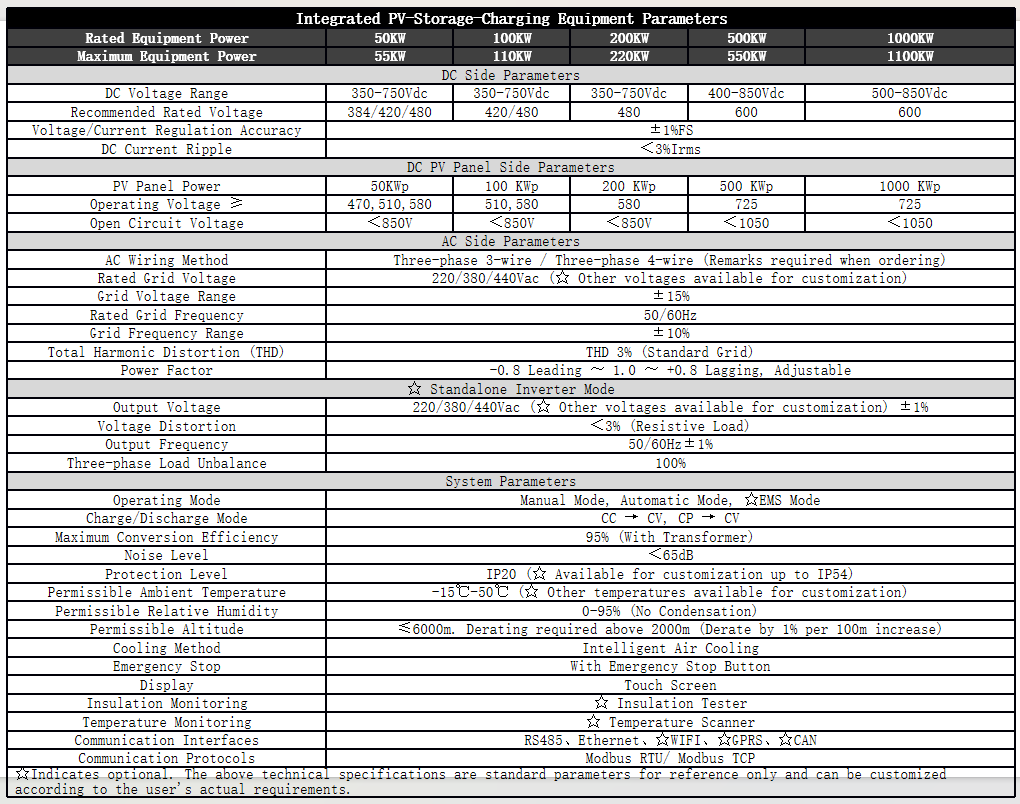

Technical Parameters and Selection
