Power Supply

Product Overview:

1. Technical Features

• Two-stage conversion using IGBT semiconductor circuit with pure digital control, ensuring high reliability and leading-edge technology.

• Featuring both power supply and load characteristics, operating in four quadrants with low energy loss.

• Reasonable and simplified circuit structure enables wide-range DC voltage output, high control precision, and fast dynamic response.

• Front-stage AC/DC vector control technology with power factor ≥0.99 and THD <3%.

• Supports various output modes including constant voltage and constant current.

• High-efficiency frequency isolation transformer ensures mutual isolation between DC and AC grid sides.

• Over ten types of hardware and software protection mechanisms.

• 7-inch LCD touch screen for display and control, with multiple communication interfaces.

• Equipped with operation history memory function.

• Optional RS485 communication for host computer monitoring, enabling remote data acquisition and surveillance.

Touch Screen:

This page displays operational data, error status, and power curves. You can view the working status through this page, and stop or start the equipment. When starting the equipment, please press the reset or stop button to clear errors. Then press the start button.

Press the button below to enter the interface.

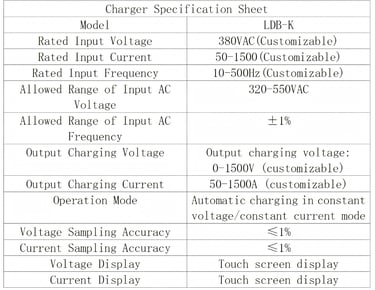

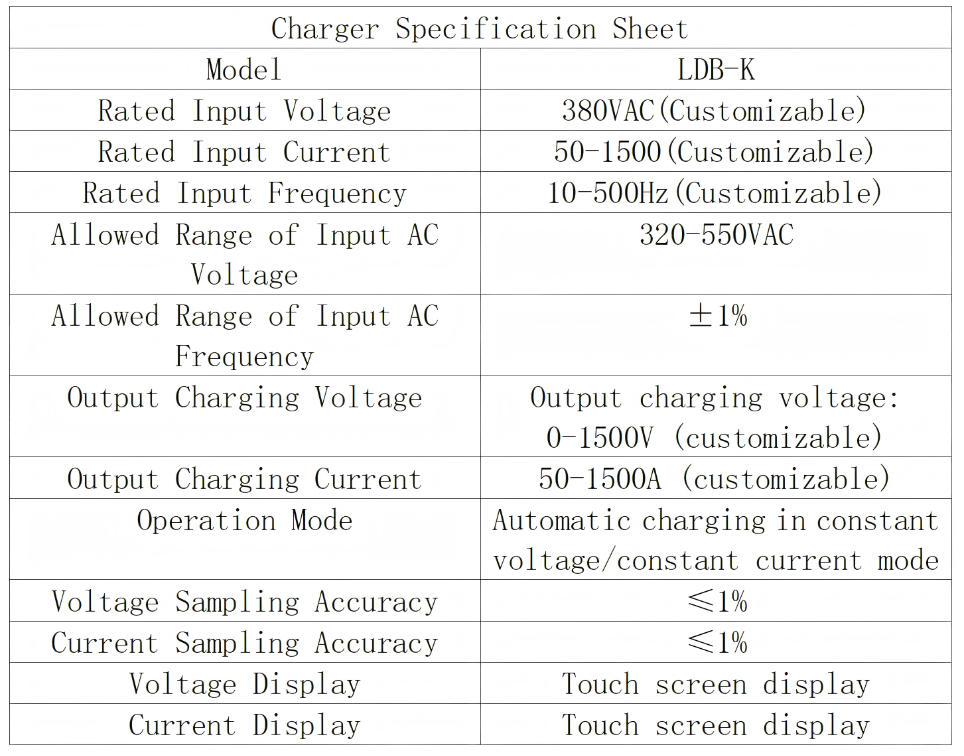

Technical Parameters and Selection
