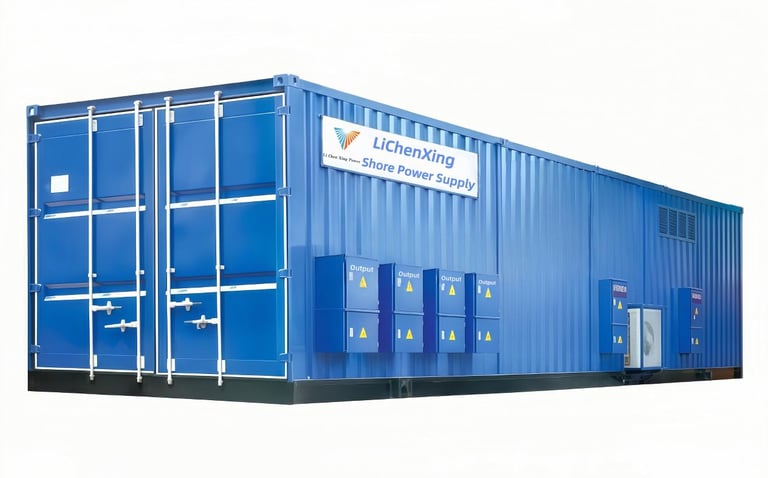

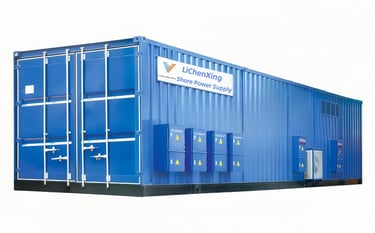

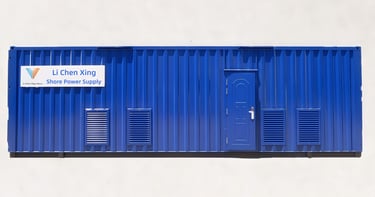

Shore Power Supply
Product Overview:
The LA series high-power shore power supply is a specially designed and manufactured 60Hz variable frequency power supply equipment developed by our company according to customer needs, specifically for harsh industrial environments such as high temperature, high humidity, high corrosiveness, and heavy load impact. Our existing mature products can reach up to 3000KVA in single unit power. It complies with China Classification Society (CCS) marine product certification standards and is widely used in applications such as on-board ships, shipbuilding and repair, offshore drilling platforms, and shore terminals for powering marine electrical equipment. With its strong research and manufacturing capabilities, Longrui has become a supplier to many large well-known shipyards and port machinery manufacturers in China.
Product Performance Advantages:
VF Separation Control
Voltage and Frequency Stabilization Technology
Intelligent Reverse Power Control Technology
Uninterrupted Output Technology
Dual-channel Control Power Supply
High-reliability Components
High-voltage Full-load Testing Station
Technical Specifications:
Rated Input Voltage: Three-phase 380V/50HZ industrial power supply. (AC voltage fluctuation range: 323V to 528V)
Rated Output Voltage: Multiple single-phase/three-phase voltage levels available according to user requirements.
Rated Output Frequency: 60HZ/50HZ (convertible) or 400Hz
Output Frequency Accuracy and Stability: Output frequency error ≤0.01Hz; Stability <0.01% (output frequency remains constant under 0-100% load variation)
Output Voltage Regulation Rate: Static <1%; Dynamic <3%
Instantaneous output voltage change during 50% load sudden addition/removal: <5%, and recovery to rated output voltage within 0.5 seconds
Variable Frequency Power Supply Overload Capacity: 150% for 10 minutes, 200% for 10 seconds
Total Harmonic Distortion of Output Voltage Waveform: THD ≤1.2～2.8%

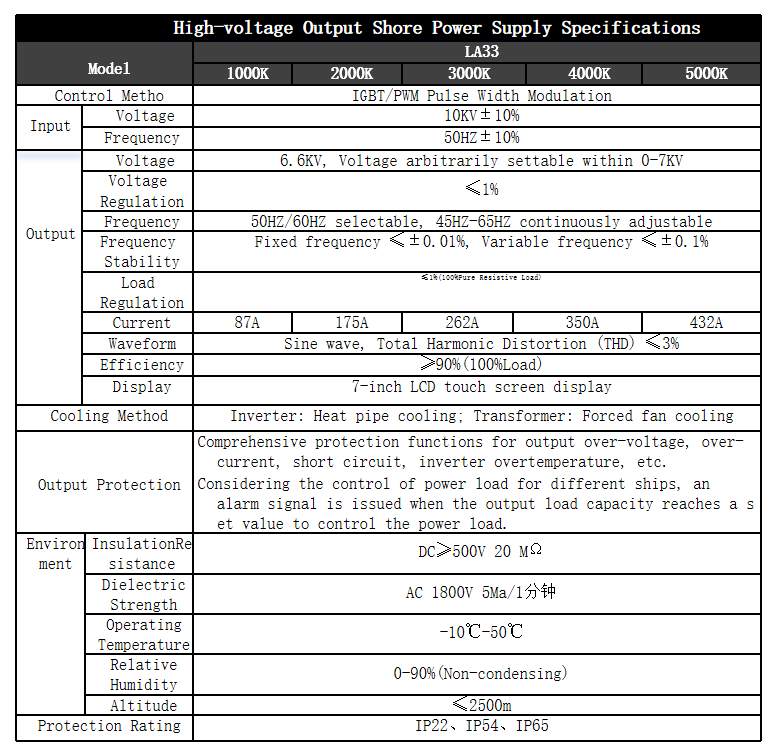

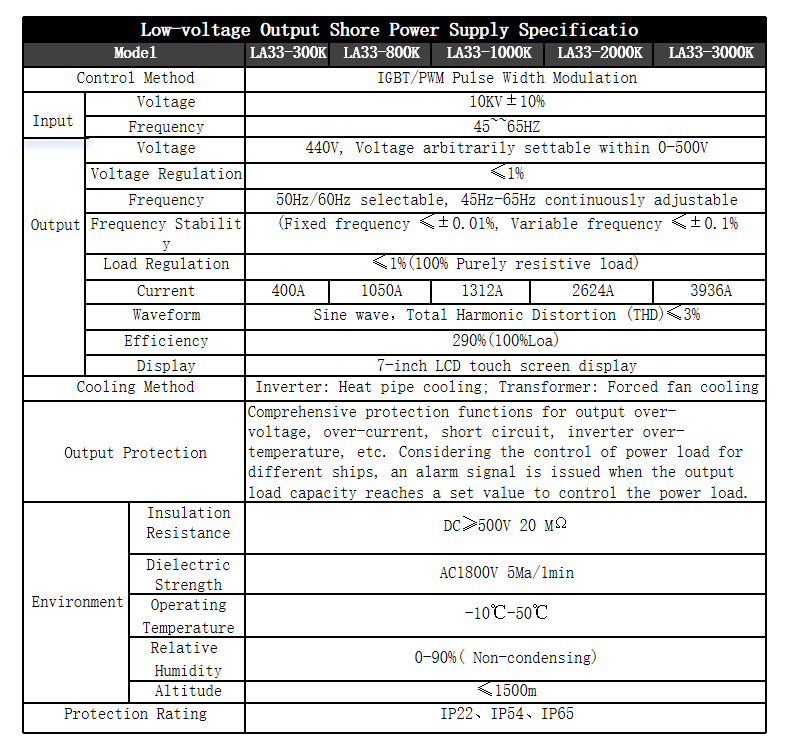

Technical Parameters and Selection
Technical Parameters and Selection
