Wide-Range Adaptation Technology for Bidirectional DC-DC Converters: Empowering Multi-Scenario Voltage Level Energy Conversion

Against the backdrop of the rapid development of new power systems and the new energy industry, the voltage levels of distributed photovoltaics, energy storage batteries, and electric vehicles exhibit diverse characteristics: residential energy storage batteries are typically 48V, commercial and industrial energy storage system voltages cover 192V~384V, electric vehicle battery pack voltage ranges reach 200V~800V, while grid-side AC bus voltages are typically 380V/220V. As the core hub for bidirectional energy flow, bidirectional DC-DC converters must break through the limitations of traditional fixed voltage gain and achieve wide-range input/output voltage adaptation to meet energy conversion needs across different scenarios. Starting from the core challenges of wide-range adaptation, this paper systematically explores key technical pathways and typical application practices.

1. Core Challenges of Wide-Range Adaptation

Wide-range adaptation of bidirectional DC-DC converters requires simultaneous consideration of voltage gain coverage, efficiency stability, and operational reliability, facing three core technical challenges:

1.1 Contradiction Between Voltage Gain and Efficiency
Traditional bidirectional DC-DC converters (such as Buck-Boost, Cuk topologies) typically have voltage gain ranges of only 0.3~3 times. When input/output voltage differences exceed 3 times, problems such as extreme duty cycles of switching devices (approaching 0 or 1), increased current ripple, and sharp efficiency drops occur. For example, when adapting a 200V electric vehicle battery to a 380V grid, the voltage gain needs to reach 1.9 times, and the efficiency of traditional topologies may drop from 96% under rated conditions to below 90%, failing to meet long-term high-efficiency operation requirements.

1.2 Electromagnetic Compatibility and Reliability Risks Under Wide Range
Under wide voltage ranges, converter switching devices must withstand greater voltage stress (e.g., when switching from 200V to 800V, device voltage ratings must cover above 800V), and significant differences in switching frequency and current amplitude under different voltage levels easily lead to intensified electromagnetic interference (EMI) and uneven device thermal stress. Additionally, voltage transient scenarios (such as voltage steps during fast EV charging) may cause converter overcurrent, overvoltage, or even damage to power devices.

1.3 Multi-Scenario Dynamic Response Requirements
In scenarios like microgrids and V2G (Vehicle-to-Grid), input/output voltages may change rapidly with load fluctuations and new energy output variations, requiring converters to complete voltage gain adjustments within milliseconds while maintaining stable output voltage. Traditional control strategies (such as PI control) struggle to balance dynamic response speed and steady-state accuracy under wide ranges, easily leading to overshoot, oscillation, and other phenomena.

2. Key Technical Pathways for Wide-Range Adaptation

Addressing the above challenges, the industry has constructed a wide-range adaptation technical system through three pathways: topology innovation, intelligent control optimization, and device upgrades.

2.1 Topology Innovation: Breaking Voltage Gain Boundaries
Topology design is the foundation for achieving wide-range voltage adaptation, with the core approach being to expand voltage gain range and optimize power distribution to improve efficiency:

· Multilevel Bidirectional Topology: By connecting multiple power units in series, high voltage stress is distributed across multiple devices while achieving wide-range voltage gain. For example, three-level bidirectional DC-DC converters can achieve voltage gains of 0.1~10 times, adapting to wide voltage ranges of 200V~2000V, with each switching device's voltage rating being only 1/3 of the output voltage, reducing device selection difficulty.

· Coupled Inductor and Voltage Multiplier Topology: Utilizing the magnetic coupling effect of coupled inductors or charge pump principles of voltage multiplier circuits to enhance voltage gain range. For example, bidirectional Boost topologies with coupled inductors can increase voltage gain to 5~10 times by adjusting coupling coefficients while suppressing current ripple, suitable for low-voltage input, high-voltage output scenarios (such as 48V energy storage batteries discharging to 380V grids).

· Modular Cascaded Topology: Cascading multiple small-power bidirectional DC-DC modules, achieving flexible voltage range adaptation by adjusting module quantity and operating modes. For example, cascading 4 48V/96V modules can adapt to input/output voltage ranges of 48V~384V, with redundant backup between modules, enhancing system reliability.

2.2 Intelligent Control Strategies: Achieving Full-Range High-Efficiency Operation
Through adaptive control algorithms, converters automatically adjust operating parameters under different voltage levels, balancing efficiency and dynamic response:

· Adaptive Mode Switching Control: Automatically switching between Buck, Boost, Buck-Boost, and other operating modes based on input/output voltage differences. For example, switching to Buck mode when input voltage exceeds output voltage; switching to Boost mode when input voltage is lower than output voltage; entering hybrid mode when voltages are close, ensuring optimal efficiency across the full range.

· Global Efficiency Optimization Control: Dynamically adjusting switching frequency and soft-switching trigger times by real-time monitoring of converter input voltage, output current, device temperature, and other parameters, enabling the converter to operate in peak efficiency intervals at each operating point. For example, reducing switching frequency under low voltage gain scenarios to minimize switching losses; increasing switching frequency under high voltage gain scenarios to reduce magnetic component size and losses.

· Robustness Control for Enhanced Dynamic Performance: Employing nonlinear control strategies such as sliding mode control and model predictive control to enhance converter dynamic response speed and anti-interference capability during voltage transients and load fluctuations. For example, model predictive control can complete voltage gain adjustments within 1ms, with overshoot controlled within 5%, meeting fast response requirements of V2G scenarios.

2.3 Wide Bandgap Devices and Integrated Design: Strengthening Wide-Range Adaptation Capability
The application of wide bandgap semiconductor devices (SiC, GaN) provides hardware support for wide-range adaptation:

· Advantages of SiC/GaN Devices: SiC devices can achieve voltage ratings above 1200V, with switching frequencies 2~5 times higher than Si devices, and switching losses only 1/5~1/10 of Si devices. Under wide voltage ranges, SiC devices can maintain high-efficiency operation. For example, when adapting 200V~800V electric vehicle batteries, SiC bidirectional DC-DC converter efficiency can stably remain above 95%, 3%~5% higher than Si devices.

· Integrated Magnetic Components and Thermal Design Optimization: Integrating magnetic components such as inductors and transformers to reduce magnetic component size and losses; employing thermal management technologies such as liquid cooling and vapor chambers to address uneven device thermal stress under wide ranges, enhancing system reliability. For example, bidirectional DC-DC converters with integrated magnetic components can reduce volume by 30% and thermal resistance by 20%, suitable for space-constrained scenarios like electric vehicles and energy storage containers.

3. Typical Application Scenarios and Practices

Wide-range adapted bidirectional DC-DC converters have achieved commercial applications in multiple scenarios, providing solutions for multi-voltage level energy conversion:

3.1 Energy Storage Systems: Adapting Different Voltage Level Battery Packs
In commercial and industrial energy storage scenarios, wide-range bidirectional DC-DC converters can simultaneously adapt to 192V lithium iron phosphate batteries and 384V high-voltage lithium battery packs, achieving bidirectional energy flow between batteries and the grid. For example, an industrial park energy storage system employs modular cascaded bidirectional DC-DC converters, automatically adjusting module operating quantity based on battery pack voltage, supporting input voltage ranges of 48V~384V, with system comprehensive efficiency exceeding 94% and annual operating costs reduced by approximately 100,000 yuan.

3.2 Electric Vehicle V2G: Achieving Bidirectional Vehicle-Grid Voltage Matching
In V2G scenarios, wide-range bidirectional DC-DC converters can adapt 200V~800V electric vehicle batteries to 380V grids, supporting multiple modes including vehicle-to-grid discharge (V2G), grid-to-vehicle charging (G2V), and vehicle-to-vehicle energy sharing (V2V). For example, a V2G charging station launched by an automaker employs SiC bidirectional DC-DC converters with voltage gain ranges of 0.5~4 times, charging efficiency of 95%, and discharging efficiency of 94%, enabling flexible interconnection between electric vehicle batteries and the grid.

3.3 Microgrids: Flexible Interconnection of Distributed Energy and Grid
In microgrid scenarios, wide-range bidirectional DC-DC converters can connect distributed photovoltaics (DC 100V~800V), energy storage batteries (DC 48V~384V), and AC grids (AC 380V), achieving multi-source collaborative optimization. For example, an island microgrid employs multilevel bidirectional DC-DC converters, adapting different voltage levels of photovoltaics, energy storage, and the grid, increasing renewable energy accommodation rates from 60% to 90% and reducing annual carbon emissions by approximately 2000 tons.

4. Challenges and Future Outlook

4.1 Existing Challenges

· Cost Control: SiC/GaN device costs are 3~5 times higher than Si devices, and modular cascaded topology system costs are relatively high, limiting their application in mid-to-low-end markets.

· Insufficient Standardization: Currently lacking industry standards for wide-range bidirectional DC-DC converters, with significant differences in topology and control strategies among manufacturers, leading to poor system compatibility.

· Extreme Condition Reliability: Efficiency and reliability of wide-range converters under extreme conditions such as -40°C low temperatures and high altitudes still require further verification.

4.2 Development Directions

· Low-Cost Wide Bandgap Device Application: As SiC/GaN device production scales expand, costs will gradually decrease, with SiC device costs expected to drop to within 1.5 times that of Si devices by 2030.

· Digitalization and Intelligence: Combining artificial intelligence and big data technologies to achieve converter self-diagnosis, self-optimization, and adaptive scenario matching, further enhancing efficiency and reliability under wide-range operation.

· Multi-Scenario Integrated Adaptation: Developing wide-range bidirectional DC-DC converters adapted to "photovoltaic-storage-charging-vehicle" integrated scenarios, achieving unified scheduling and management of multi-energy sources and multi-voltage levels.

Conclusion

Wide-range adaptation is the core technical direction for bidirectional DC-DC converters to adapt to the diversified voltage demands of new power systems. Through topology innovation, intelligent control optimization, and wide bandgap device application, traditional converter voltage gain boundaries can be effectively broken, achieving full-range high-efficiency, reliable operation. In the future, wide-range bidirectional DC-DC converters will become core equipment in distributed energy, energy storage, electric vehicles, and other fields, providing key support for energy transition under "dual carbon" goals.

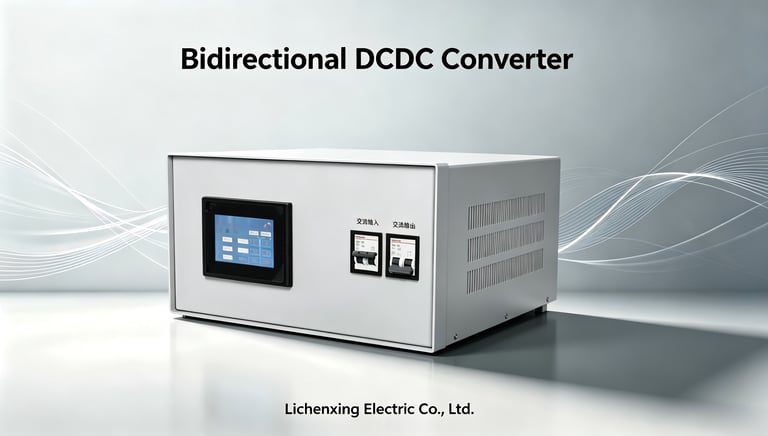

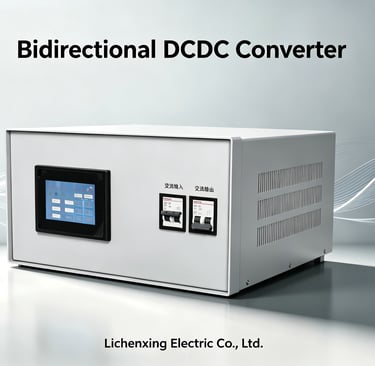

With over a decade of expertise in the power supply field, lcxpower.com achieves unity of "wide range" and "high efficiency" through three innovations: employing "isolated dual active bridge + multilevel" hybrid topology, achieving seamless buck-boost ratio switching from 1:10 to 10:1, adapting voltages from 48V to 1500V; introducing SiC MOSFETs and high-frequency soft-switching technology, achieving full-load efficiency exceeding 96%, with temperature rise controlled within 15K under extreme conditions; embedding adaptive MPPT algorithms and millisecond-level power dispatch interfaces, maintaining constant power output during grid voltage ±20% fluctuations, with switching times less than 5ms.

In a "photovoltaic-storage-charging" integrated demonstration station project, lcxpower.com converters adapted to charging demands of different vehicle models (200V-900V) while completing photovoltaic step-up grid connection, increasing overall system energy utilization by 12%.
